Oracle Solaris OS

CloudFabrix RDA provides out of the box agent-less integration for inventory data collection from Oracle Solaris server OS editions using SSH protocol. Using this integration, inventory data like Solaris OS version, server make & model, running services and processes and TCP/UDP network connections will be collected.

Using RDA's integration with Solaris Server OS, below are the two primary use cases that are supported and consumed within the CloudFabrix Asset Intelligence and AIOps platforms.

Solaris Server OS inventory
Application Dependency

1. Prerequisites

1.1 Solaris OS inventory

Supported Solaris server OS distributions include Version 10 and above. An SSH user account needs to be created for collecting data, and it should have sudo privileges for the following commands.

netstat -an -f inet
ifconfig -a
svcs -a
pkginfo -l
isalist
prtconf
psrinfo -p
iostat -En
zpool status

On SOLARIS edit /etc/sudoers file and add the above commands for the user account that is used for data collection.

1.2 Test SSH Connection

To verify the SSH configuration, use the ssh command. This command helps test the remote connection to the target Solaris server over the SSH protocol and confirms the ability to execute a command.

ssh [user-name]@[ip-address]

ssh cfxuser@192.168.10.10 hostname

2. Adding SOLARIS OS as Datasource/Extension in 'RDA'

SOLARIS OS or any other datasource/extension's configuration is configured in RDA's user interface. Login into RDA's user interface using a browser.

https://[rda-ip-address]:9998

Under Notebook, click on CFXDX Python 3 box

In the Notebook command box, type botadmin() and alt (or option) + Enter to open datasource administration menu.

Click on Add menu and under Type drop down, select solaris-invernotry

Secret Type: solaris-inventory: Solaris OS & Application Inventory Collection
name: Datasource/Extension label which should be unique within the RDA
Hostname: IP Address / DNS name of solaris host
Username: SOLARIS username
Password: SOLARIS password
Private Key Passphrase: SSH private key passphrase (optional)
SSH Private Key: SSH private key (optional)
Port: 22

Click on Check Connectivity to verify the network access and credentials. Once it is validated, click on Add button to add the solaris-inventory as a datasource.

2.1. Adding Solaris credentials in CFX Portal

Navigation Path Home Menu -> Configuration -> RDA Integrations

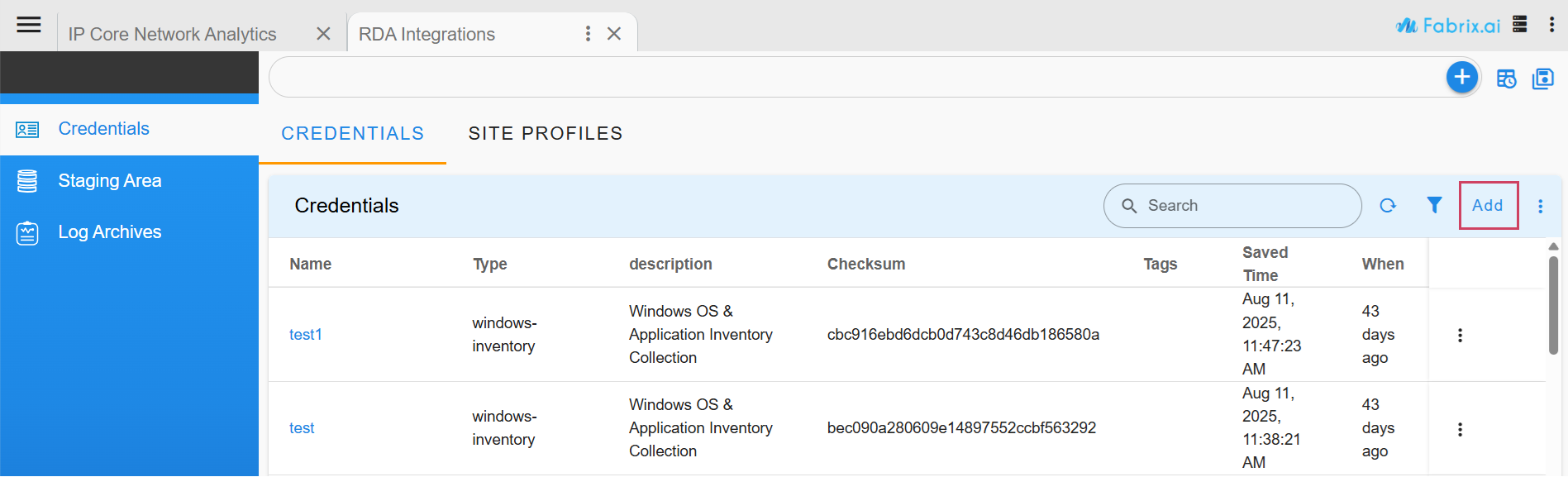

Click on Add under credentials as shown below in the screenshot

Select Solaris Inventory in the secret type drop down menu -> solaris-inventory: Solaris OS & Application Inventory Collection

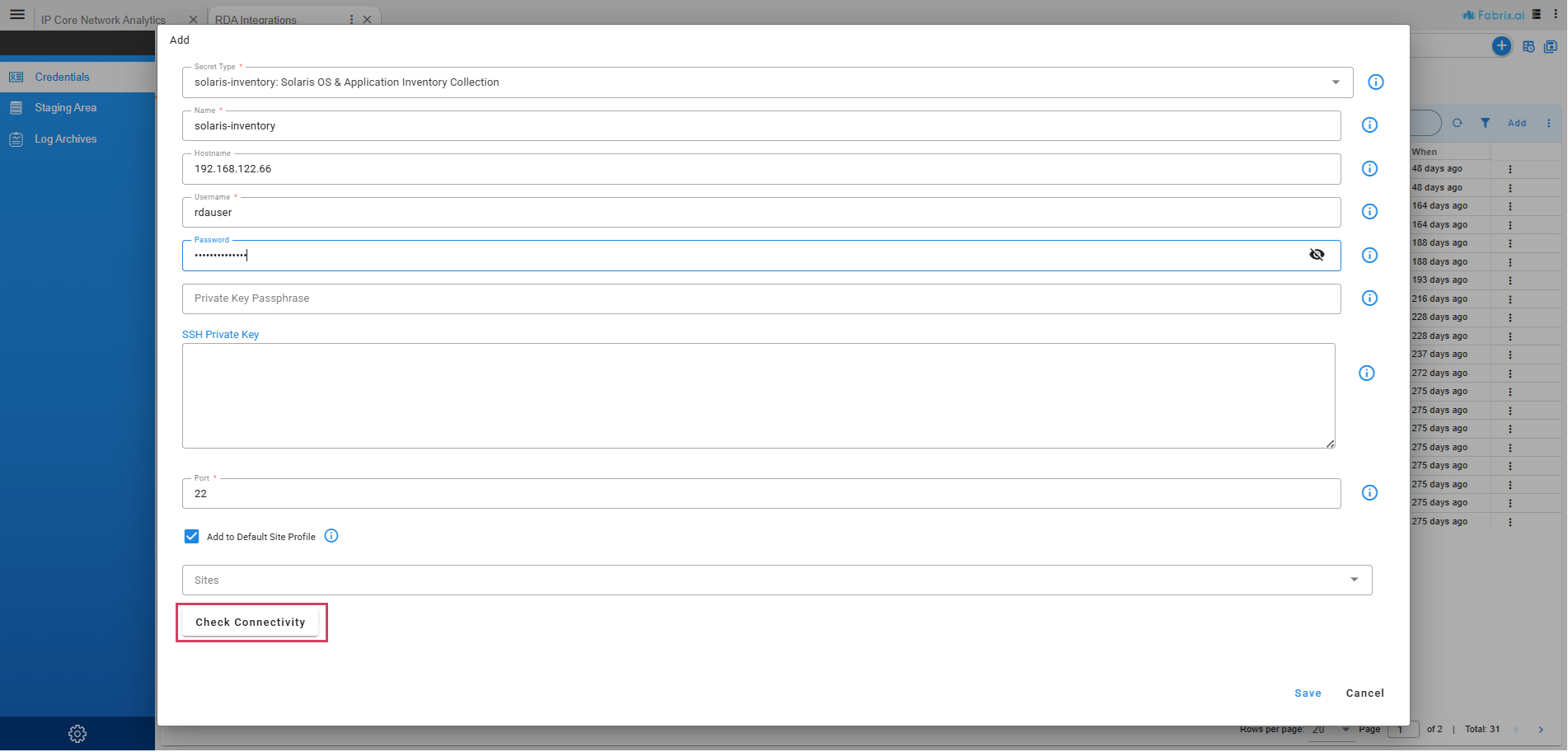

Add the credentials like Name, Hostname, Username and password, port as shown below and check connectivity and save it

Secret Type: solaris-inventory: Solaris OS & Application Inventory Collection
name: Datasource/Extension label which should be unique within the RDA
Hostname: IP Address / DNS name of solaris host
Username: SOLARIS username
Password: SOLARIS password
Private Key Passphrase: SSH private key passphrase (optional)
SSH Private Key: SSH private key (optional)
Port: 22(update port number if we are not using the default port 22)

Click on Check Connectivity to verify the network access and credentials. Once it is validated, click on Save to add the solaris-inventory as a datasource.

Once Solaris OS integration details are configured in RDA Studio as a datasource, it will be ready to connect to targe Solaris servers and explore the data for the analysis.

Once SOLARIS OS integration details are configured in RDA as a datasource, it will be ready to connect to target SOLARIS servers and explore the data for the analysis.

3. Solaris Bots

Below are the available bots for Solaris OS integration.

3.1 @solaris-inventory:system-info

This bot collects solaris system information Solaris OS Version, Kernal Version, hostname, CPU, Memory & Network information and file systems

Below are the list of commands it executes while running the system-info bot.

hostid,
hostname,
isainfo,
psrinfo -p,
prtconf | grep Memory,
prtdiag -v,
cat /etc/release,
/usr/bin/pagesize,
swap -s

3.2 @solaris-inventory:disks

In Solaris OS, the zpool list and zpool status commands are used to monitor and gather information about ZFS storage pools

This bot collects solaris disk information like disk size, device name, vendor, serial number, device status and error related information.

Below mentioned command can be used to collect disk info, This command provides a summary of the storage pools and their overall status

zpool list

NAME	Name of the ZFS pool
Size	Total size of the pool.
Alloc	Amount of space allocated (used) in the pool.
Free	Amount of free space available in the pool.
CKPOINT	Space available in a checkpoint, if applicable.
EXPANDSZ	Size of additional space available for pool expansion, if applicable.
FRAG	Fragmentation percentage in the pool.
CAP	Percentage of pool space used (capacity).
DEDUP	Deduplication ratio of the pool.
HEALTH	Health status of the pool (e.g., ONLINE, DEGRADED, FAULTED).
ALTROOT	Alternate root directory for the pool, if set.

Below mentioned command provides detailed information about the status of the pool, including its configuration, components, and errors

zpool status <zpool_name>

Pool Overview

Attribute	Description
pool name	Name of the pool.
state	Current state of the pool (e.g., ONLINE, DEGRADED, FAULTED).
status	A brief description of the pool's status (if errors or issues are present).
action	Recommended action for resolving issues (if any).
scan	Information about recent scrubbing or resilvering operations, including progress.
config	Configuration of the pool and its components.

Device Configurations

Attribute	Description
NAME	Names of the pool's devices or vdevs (e.g., disks, mirrors, RAID-Z groups).
STATE	State of each device (e.g., ONLINE, DEGRADED, FAULTED).
READ	Number of read errors detected.
WRITE	Number of write errors detected.
CKSUM	Number of checksum errors detected.

Key Differences

Command	Purpose	Details
Zpool list	High-level summary of pools	Basic attributes like size, usage, and health.
Zpool status	Detailed status and configuration	Device-level errors, state, and scrub information.

Below mentioned command is used for inventorydata collection

iostat -rEn

3.3 @solaris-inventory:software-packages

In Solaris OS, the pkginfo -l command provides detailed information about a specific software package installed on the system. The output includes various attributes of the package, offering insights into its metadata and configuration.

Below mentioned command is used to collect software packages info

pkginfo -l

Attribute	Description
PKGINST	The package instance name (unique identifier for the package).
NAME	A short descriptive name of the package.
CATEGORY	The category to which the package belongs (e.g., application, system).
ARCH	The architecture for which the package is built (e.g., sparc, x86).
VERSION	The version number of the package.
BASEDIR	The base directory where the package is installed.
VENDOR	The vendor or author of the package.
DESC	A brief description of the package.
PSTAMP	The package's production stamp (a unique build identifier).
INSTDATE	The date and time when the package was installed.
STATUS	The status of the package (e.g., installed).
FILES	Lists the file paths associated with the package.

Key Points
pkginfo without the -l flag provides a summary listing of all installed packages.
The -l flag (long format) provides detailed metadata for a specific package or all packages if no package name is specified.
It's useful for auditing, troubleshooting, or verifying software installations.

3.4 @solaris-inventory:filesystems

This bot collects information like mounted filesystem name , mounted directory, raw disk path information and File system attributes.

Below command provides command provides a list of all mounted file systems in a parsable format, suitable for use in scripts or automation and to collect software packages info.

mount -p

Attribute	Description
special_device	The device or resource associated with the file system (e.g., /dev/dsk/c0t0d0s0 or a network share).
mount_point	The directory where the file system is mounted (e.g., /, /usr, /mnt).
fstype	The file system type (e.g., ufs, zfs, nfs, vxfs).
mount_options	Options used when mounting the file system (e.g., rw, ro, nosuid).
freq	Dump frequency for dump utility; usually 0 (not used in modern systems).
passno	Pass number used for fsck during system boot; controls the order in which file systems are checked.

3.5 @solaris-inventory:disk-usage

In Solaris OS, the df -h command is used to display information about mounted file systems in a human-readable format, with sizes shown in units like KB, MB, GB, etc.

Below mentioned is used to collect disk usageinfo

df -h

Example Output

Filesystem             Size   Used  Avail Capacity  Mounted on
/dev/dsk/c0t0d0s0      20G    15G    5G   75%       /
rpool/export           50G    10G   40G   20%       /export
server:/share         100G    60G   40G   60%       /mnt

Attribute	Description
Filesystem	The device or resource associated with the file system (e.g., /dev/dsk/c0t0d0s0 or NFS share).
Size	The total size of the file system in human-readable units (e.g., GB, MB).
Used	The amount of space currently used on the file system.
Avail	The amount of free space available for use.
Capacity	The percentage of the file system's total size that is currently in use.
Mounted On	The mount point where the file system is attached in the directory structure.

3.6 @solaris-inventory:services

This bot collects running services information on Solaris OS.

Below mentioned command provides a list of all services managed by the Service Management Facility (SMF), including both enabled and disabled services.

svcs -a

Attribute	Description
STATE	The current state of the service. Possible states include: - online: The service is running and operational. - offline: The service is not running but not in an error state. - disabled: The service is administratively disabled. - maintenance: The service has encountered an error and requires administrative intervention. - degraded: The service is running but with limited functionality.
STIME	The time or date when the service transitioned to its current state.
FMRI	The Fault Management Resource Identifier, a unique identifier for the service, including its category, name, and instance (e.g., svc:/network/ssh:default).

3.7 @solaris-inventory:routing-table

This bot collects solaris routing table information like destination network , gateway IP address,network interface of route,packets and flags of routing table information.

Below mentioned command displays the kernel's routing table in a numeric format. This provides information about network routes configured on the system, showing IP addresses rather than resolving them to hostnames for faster and clearer output.

netstat -nr

Attribute	Description
Destination	The destination network or host (e.g., default, 192.168.1.0, 127.0.0.1).
Gateway	The next-hop router or gateway address for the destination.
Flags	Flags indicating the route type and characteristics (see below for flag details).
Ref	The reference count; how many active references are using this route (may not always be meaningful).
Use	The number of packets sent via this route.
Interface	The network interface associated with this route (e.g., e1000g0, lo0).

3.8 @solaris-inventory:network-config

This bot collects solaris network information like interface name , IP address, netmask,MTU,flags,state,type,MAC address,Zone etc.

Below mentioned command displays detailed information about all network interfaces configured on the system. This command includes both active (up) and inactive (down) interfaces, providing details about their configurations and statuses.

ifconfig -a

Attribute	Description
Interface name	The name of the network interface (e.g., e1000g0, lo0).
flags	Flags indicating the state and capabilities of the interface (see details below).
mtu	The Maximum Transmission Unit, representing the largest packet size the interface can handle.
index	A unique numeric identifier assigned to the interface.
inet	The IPv4 address assigned to the interface.
netmask	The subnet mask in hexadecimal notation (e.g., ffffff00 for a 255.255.255.0 subnet).
broadcast	The broadcast address for the interface.
ether	The hardware (MAC) address of the interface.
inet6	(If present) The IPv6 address assigned to the interface.
status	(Optional) The operational status of the interface (e.g., up or down).

3.9 @solaris-inventory:processes

This bot collects information like Process ID, process user , %CPU , %MEM, Virtual memory size , process status , TTY , START ,TIME etc.

Below mentioned command provides a detailed listing of all currently running processes on the system.

ps -Aefww

Attribute	Description
UID	The user ID of the process owner (e.g., root, daemon, or a specific user).
PID	The process ID (unique identifier for the process).
PPID	The parent process ID (the process that spawned this process).
C	The CPU usage (percentage) of the process.
STIME	The start time or date of the process (e.g., Nov 27 or 14:32).
TTY	The terminal associated with the process. ? indicates no terminal (e.g., system daemons).
TIME	The cumulative CPU time the process has consumed.
CMD	The full command-line used to start the process, including its arguments (not truncated with ww)

3.10 @solaris-inventory:netstat

This bot collects routing information like default gateway address, state etc.

Below mentioned command displays detailed information about active UDP sockets for IPv4 (inet).

netstat -anu -f inet

Attribute	Description
Local Address	The local IP address and port number that the socket is bound to (e.g., 192.168.1.100.123).
Remote Address	The remote IP address and port number of the peer connection (e.g., 192.168.1.1.123).
State	The state of the socket (for UDP sockets, typically Idle).
